先进液压气动密封产品线

Advanced Hydraulic & Pneumatic Seal Lines

防尘圈

Wipers

Wiper Seal

缸体密封系统的保护屏障，有效阻止外部灰尘、水分及杂质侵入。

Protective barrier for cylinder sealing system, effectively blocking external dust, moisture and contaminants.

功能特点

Function Features

缸体密封系统的保护屏障
Protective barrier for cylinder sealing system
有效阻止外部灰尘、水分及杂质侵入
Effectively blocks external dust, moisture and contaminants

设计/材料要求

Design / Material Requirements

唇口避免坚硬，防止潮湿灰尘沉淀
Lip avoids being too rigid, prevent moisture & dust buildup
适应摆动、唇口张力恰当
Adapt to oscillation, proper lip tension
规格记忆力强，超强抗磨损
Excellent dimensional memory, outstanding wear resistance
亦有多种结构满足不同缸体需求
Multiple structures available for different cylinder needs

拉杆支撑环

Rod Bearing Bands

Rod Bearing

拉杆支撑环通过阻止运动部分金属与金属之间的直接摩擦而延长设备使用寿命。

Rod bearing bands extend equipment life by preventing direct metal-to-metal friction between moving parts.

⚠ 损伤警示：金属间直接接触产生破坏性摩擦，磨粒滞留于金属表面之间将导致划伤。

⚠ Damage Warning: Damaging metal-to-metal contact. Abrasives caught between metal surfaces cause scoring.

功能特点

Function Features

阻止金属间直接摩擦
Prevents metal-to-metal friction
延长设备使用寿命
Extends equipment service life
拦截金属间磨粒，防止划伤
Traps abrasive particles, prevents scoring

设计/材料要求

Design / Material Requirements

低摩擦系数
Low friction coefficient
降低摩擦热
Reduce friction heat
耐磨损、使用寿命长
Wear-resistant, long service life
不易冷流、强承载能力
Resists cold flow, high load capacity

活塞导向环

Piston Bearing Bands

Piston Guide

活塞导向环通过阻止运动部分金属与金属之间的直接摩擦而延长设备使用寿命。

Piston bearing bands extend equipment life by preventing direct metal-to-metal friction between moving parts.

⚠ 损伤警示：金属间直接接触产生破坏性摩擦，磨粒滞留于金属表面之间将导致划伤。

⚠ Damage Warning: Damaging metal-to-metal contact. Abrasives caught between metal surfaces cause scoring.

功能特点

Function Features

阻止金属间直接摩擦
Prevents metal-to-metal friction
延长设备使用寿命
Extends equipment service life
拦截金属间磨粒，防止划伤
Traps abrasive particles, prevents scoring

设计/材料要求

Design / Material Requirements

低摩擦系数
Low friction coefficient
降低摩擦热
Reduce friction heat
耐磨损、使用寿命长
Wear-resistant, long service life
不易冷流、强承载能力
Resists cold flow, high load capacity

杆密封

Rod Seals

Rod Seal

杆密封与活塞密封作为缸体内极重要的两大密封部件，共同保障系统密封可靠性。

Rod seals and piston seals are the two most critical sealing components within the cylinder, jointly ensuring system sealing reliability.

功能特点

Function Features

低压利用唇口张开和弹性记忆密封
Low-pressure: lip opening & elastic memory seal
高压在特定区域产生额外密封力
High-pressure: extra sealing force in specific zone

设计/材料要求

Design / Material Requirements

高精度工艺，精控唇口过盈量
High-precision, controlled lip interference
低摩擦性、极佳记忆与耐压性
Low friction, excellent memory & pressure resistance
特殊抗水解老化
Special hydrolysis & aging resistance
亦有多种结构满足不同缸体需求
Multiple structures available for different cylinder needs

活塞密封

Piston Seals

Piston Seal

杆密封与活塞密封作为缸体内极重要的两大密封部件，共同保障系统密封可靠性。

Rod seals and piston seals are the two most critical sealing components within the cylinder, jointly ensuring system sealing reliability.

功能特点

Function Features

缸体内极重要密封部件
Critical sealing component in cylinder
低压唇口张开+弹性记忆密封
Low-pressure: lip + elastic memory
高压区域产生额外密封力
High-pressure: extra sealing force

设计/材料要求

Design / Material Requirements

高精度工艺，精控唇口过盈量
High-precision, controlled lip interference
低摩擦、极佳记忆与耐压性
Low friction, excellent memory & pressure resistance
特殊抗水解老化
Special hydrolysis & aging resistance
亦有多种结构满足不同缸体需求
Multiple structures available for different cylinder needs

O型圈

O-Rings

O-Ring Seal

缸体结构件连接处及端面贴合位置的静密封保障，确保无泄漏运行。

Static sealing guarantee for cylinder structural connections and end-face fitting positions, ensuring leak-free operation.

功能特点

Function Features

缸体结构件的连接处及端面贴合位置，作为唯一的静密封保障，同样需确保无泄漏。
At structural component connections and end face mating positions, serving as the sole static seal guarantee, also requiring zero leakage assurance.

设计/材料要求

Design / Material Requirements

材料选型除适配工况要求外，材料性能需更稳定
Material selection beyond operating condition requirements, requiring more stable material performance
规格上亦可满足特殊情况缸体的非标需求
Specifications can also meet non-standard requirements for special cylinder applications

常见主密封截面示图

COMMON MAIN SEAL CROSS-SECTIONS

密封材料

SEAL MATERIALS

耐高压低摩擦密封材料

High-Pressure Low-Friction Seal Materials

Y200

抗高压聚氨酯

High-Pressure Polyurethane

抗高压的强化密封材料，解决了传统气液压缸密封裂解磨损的问题，具有极佳的记忆性和耐压性。

Reinforced high-pressure seal material, solving traditional hydraulic cylinder seal cracking and wear issues, with excellent memory and pressure resistance.

温度Temperature-50~85°C

硬度Hardness90 Shore A

速度Speed3 m/s

压力Pressure600 kg/cm²

适用介质Media液压油、润滑油、油水混合物Hydraulic oil, lube oil, oil-water mix

适用密封Applications防尘圈、拉杆封、活塞封、导向环Wipers, rod seals, piston seals, guide rings

Y202

强化四氟

Reinforced PTFE

强化的自润滑密封材料，具有稳定的化学性、优秀的耐压性和耐磨性。

Reinforced self-lubricating seal material with stable chemical properties, excellent pressure and wear resistance.

温度Temperature-200~250°C

硬度Hardness60 Shore D

速度Speed10 m/s

压力Pressure600 kg/cm²

适用介质MediapH 0-14

适用密封Applications防尘圈、导向环、格莱圈、斯特封Wipers, guide rings, Glyd rings, Stepseals

Y205

丁基橡胶

Butyl Rubber

物理性、化学性都稳定的密封材料，与液压油、润滑油具有很好的相溶性。

Physically and chemically stable seal material, with excellent compatibility with hydraulic oil and lubricants.

温度Temperature-30~100°C

硬度Hardness80 Shore A

速度Speed3 m/s

压力Pressure300 kg/cm²

适用介质Media液压油、润滑油、水基溶液Hydraulic oil, lube oil, water-based solutions

适用密封Applications防尘圈、活塞封、拉杆封、静密封Wipers, piston seals, rod seals, static seals

材料特性

MATERIAL PROPERTIES

聚醚聚胺酯 — 新一代密封首选材料

Polyether PU — The Preferred New-Generation Seal Material

💪

高硬度

High Hardness

超强承载能力（6倍），抗压临界间隙尺寸

Super load capacity (6x), compressive critical gap

🧠

规格记忆力强

Excellent Dimensional Memory

极佳的弹性记忆性，长期使用不变形

Excellent elastic memory, no deformation over long-term use

🛡

优秀抗磨损

Excellent Wear Resistance

摩擦系数低（0.18~0.30），显著降低磨损

Low friction coefficient (0.18~0.30), significantly reduces wear

🌡

温度范围广

Wide Temperature Range

良好的温度适应范围，适用多种工况

Good temperature adaptation, suitable for various conditions

💧

抗水解氧化

Hydrolysis & Oxidation Resistant

抗水解、抗紫外线、抗氧化，耐久性强

Resists hydrolysis, UV, oxidation, strong durability

🔄

良好流动兼容性

Excellent Fluid Compatibility

与多种液压介质良好相溶，适用性广

Good compatibility with various hydraulic media, wide applicability

加工工艺

MACHINING PROCESS

数控加工 vs 模具加工

CNC Machining vs Mold Machining

传统的磨具加工并不适合维护现场，而数控加工工艺是密封性能的核心保障。

Traditional mold machining is not suitable for maintenance sites, while CNC machining is the core guarantee of sealing performance.

模具加工 — 设备厂的常用选择

Mold Machining — The OEM Standard

批量的要求，单个产品价格高
Batch requirements, high per-unit cost
巨额的模具费用
Huge mold costs
生产周期长
Long production cycle
不适合维护现场
Not suitable for maintenance sites

数控加工 — 密封性能的保障

CNC Machining — Seal Performance Guarantee

无需开模，快速响应
No mold needed, fast response
无起订量限制
No minimum order quantity
尺寸精确，精控过盈量
Precise dimensions, controlled interference
快速交货，缩短交付周期
Fast delivery, shortened lead time

密封是关键，关键是密封

It's All About the Seals

选择材料

Select Material

根据工况条件选择密封材料

Select seal material based on operating conditions

确定形式

Determine Type

根据设备运行特点和沟槽情况确定密封形式

Determine seal type based on equipment characteristics and groove

设计制品

Design Product

根据沟槽尺寸结合材料特性设计密封制品

Design seal product based on groove dimensions and material properties

精密制造

Precision Manufacturing

先进CNC数控中心精控生产

Advanced CNC machining center for precision-controlled production

问题

PROBLEM

设备缸突然坏了，怎么办？

Equipment cylinder suddenly broke, what to do?

更换关键密封部件后设备缸依然无法正常运行？
After replacing critical seals, the cylinder still won't operate normally?
缸筒、缸杆、活塞等本体部位出现磨损锈蚀或破坏？
Cylinder barrel, rod, piston or other body parts showing wear, corrosion or damage?
苛刻的作业环境对设备缸有更高的特殊需求？
Harsh operating environments creating special requirements?
设备缸高昂的更换费用或较长供应周期影响生产？
High replacement costs or long lead times impacting production?

方案

SOLUTION

专业的快修中心，让设备缸焕然一新！

Professional Rapid Repair Center — Restore Your Cylinder to Like-New Condition

工厂专业的检测平台，严格流程管理与技术控制
Professional factory testing platform, strict process management & technical control
自2007年专注工业流体控制技术，积累丰富经验
Focused on industrial fluid control since 2007, rich accumulated experience
高品质高精度密封部件，亦可满足特殊定制化需求
High-quality, high-precision seals, also supports special customization
特殊工况下安排专业人员上门服务
On-site service by professional technicians for special operating conditions

最有价值的应急策略

Your Best Emergency Plan

失效分析

FAILURE ANALYSIS

密封失效分析 — 发现泄漏的根源

Seal Failure Analysis — Finding the Root Cause of Leakage

90%+

液压系统故障由密封失效引起

of hydraulic system failures are caused by seal failure

密封费用仅占总检修费用的1~3%，却直接影响超过90%的液压系统故障。不要仅仅更换密封件，更重要的是分析失效原因，了解密封件及其工作的系统，才能找到防止泄漏的根本方法。

Seal costs account for only 1~3% of total maintenance cost, yet directly affect over 90% of hydraulic system failures. Don't just replace seals — analyze failure causes, understand the seal and its system to find the root-cause solution to leakage.

维修模式

MAINTENANCE MODES

延长检修周期 — 所有工厂的检修趋势

Extending Maintenance Cycles — The Way Forward

工厂中存在以下三种维修模式。被动式维修代价最高，预防式维修容易过度更换，而周期性检修兼顾可靠性与经济性，是延长检修周期的发展趋势。

Three maintenance modes exist in factories. Reactive maintenance is the most costly, preventive maintenance tends to over-replace, while periodic inspection balances reliability and economy — the trend for extending maintenance cycles.

被动式维修（抢修）

Reactive Maintenance

触发方式

Trigger

设备故障停机后

After equipment failure

维修策略

Strategy

紧急抢修，被动应对

Emergency repair, passive response

主要问题

Key Issue

停机损失大，影响生产计划，可能造成二次损坏

Large downtime, disrupted production, potential secondary damage

代价最高

Highest Cost

→

预防式维修

Preventive Maintenance

触发方式

Trigger

按固定时间周期

Fixed time interval

维修策略

Strategy

到期直接更换备件，无论好坏

Replace parts on schedule regardless of condition

主要问题

Key Issue

易造成过度维修和备件浪费

Easily causes over-maintenance and parts waste

易过度维修

Over-maintenance

→

周期性检修

Periodic Inspection

触发方式

Trigger

定期检查，按需维修

Regular inspection, maintenance on demand

维修策略

Strategy

检测密封件磨损状态，根据结果决定是否更换

Inspect seal wear, decide replacement based on results

主要优势

Key Advantage

兼顾可靠性与经济性，有效延长检修周期

Balances reliability and economy, effectively extends maintenance cycles

最佳方案

Best Practice

改进方案

IMPROVEMENT PLAN

液压系统改进方案及价值目标

Hydraulic System Improvement Plan & Value Goals

设计改进

Design Improvement

有效控制污染源，确保液压设备有油品的安全。从密封结构设计入手，优化唇口几何形状与过盈量分配。

Effectively control contamination sources, ensure hydraulic equipment oil safety. Start from seal structure design, optimize lip geometry and interference distribution.

材料升级

Material Upgrade

降低磨损，保障密封有效的控制性和可靠性。引进超低摩擦系数材料，延长密封使用寿命。

Reduce wear, ensure effective seal control and reliability. Introduce ultra-low friction materials to extend seal service life.

先进加工方式

Advanced Machining

精度和过盈量实现有效精确控制。数控加工无需开模，无起订量限制，尺寸精确，快速交货。

Achieve effective precision control of dimensions and interference. CNC machining requires no mold, no minimum order, precise dimensions, fast delivery.

快速及时的服务

Fast, Responsive Service

快速交货，满足应急的同时，建立完善的数据库信息，全程跟踪服务。

Fast delivery to meet emergency needs, while establishing a comprehensive database with full-service tracking.

维修流程

MAINTENANCE PROCESS

📥

步骤 01

STEP 01

到货检查

Inspection

→

📐

步骤 02

STEP 02

检测与测绘

Testing & Surveying

→

🏭

步骤 03

STEP 03

维修与生产

Repair & Reconditioning

→

🔩

步骤 04

STEP 04

高品质密封更换

Seal Replacement

→

✅

步骤 05

STEP 05

试验检测

Testing

→

🎨

步骤 06

STEP 06

喷漆

Painting

→

📦

步骤 07

STEP 07

外观整理

Finishing

维修案例

REPAIR CASES

修缸前 · 修缸后

Before & After Repair

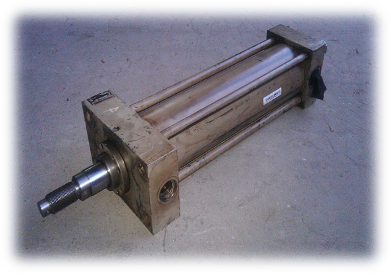

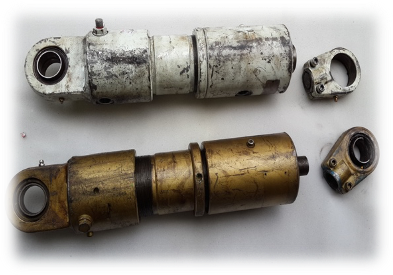

维修前

BEFORE

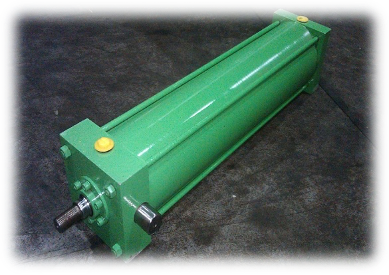

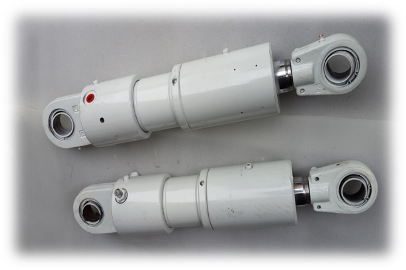

维修后

AFTER

专业的缸体翻新效果

Professional Cylinder Refurbishment

从锈蚀老化到焕然一新，我们提供全方位的缸体翻新服务。经过拆解清洗、精密检测、更换密封件、重新喷涂等工序，让旧缸恢复如新。

from rusty and worn to brand new, we provide comprehensive cylinder refurbishment services. Through disassembly, cleaning, precision testing, seal replacement, and repainting, we restore old cylinders to like-new condition.

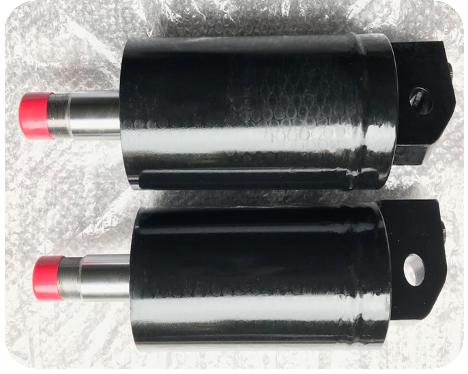

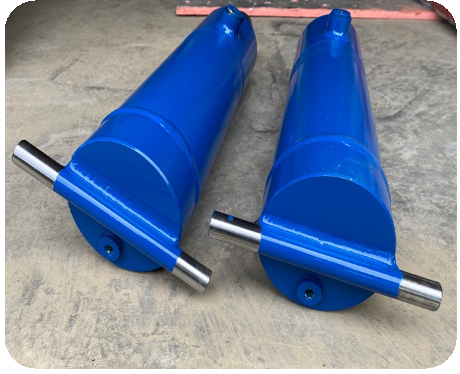

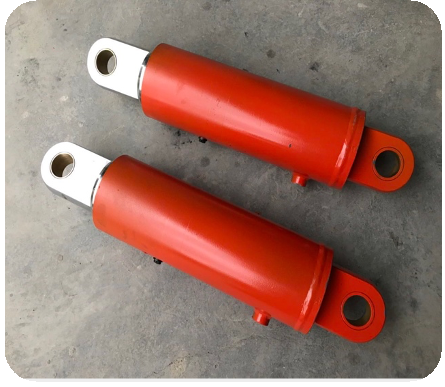

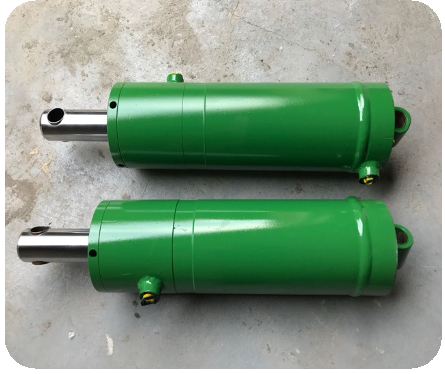

定制示范

CUSTOMIZATION DEMO

根据客户需求个性化定制各类液压缸、气缸，从设计到生产一站式服务，满足不同行业设备配套需求。

Custom hydraulic and pneumatic cylinders built to your specifications, from design to production with one-stop service, meeting different industry equipment requirements.
